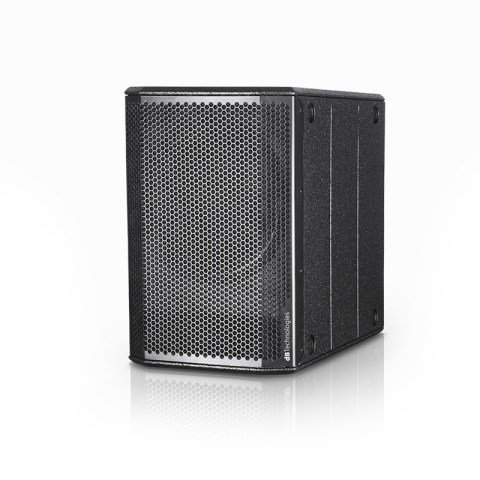

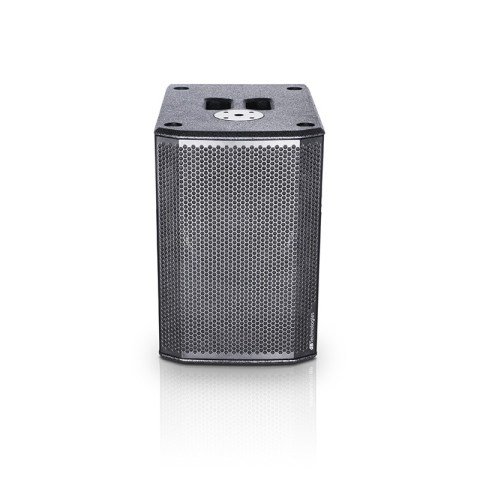

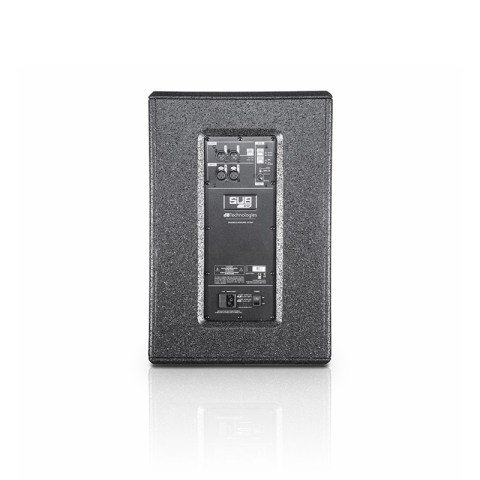

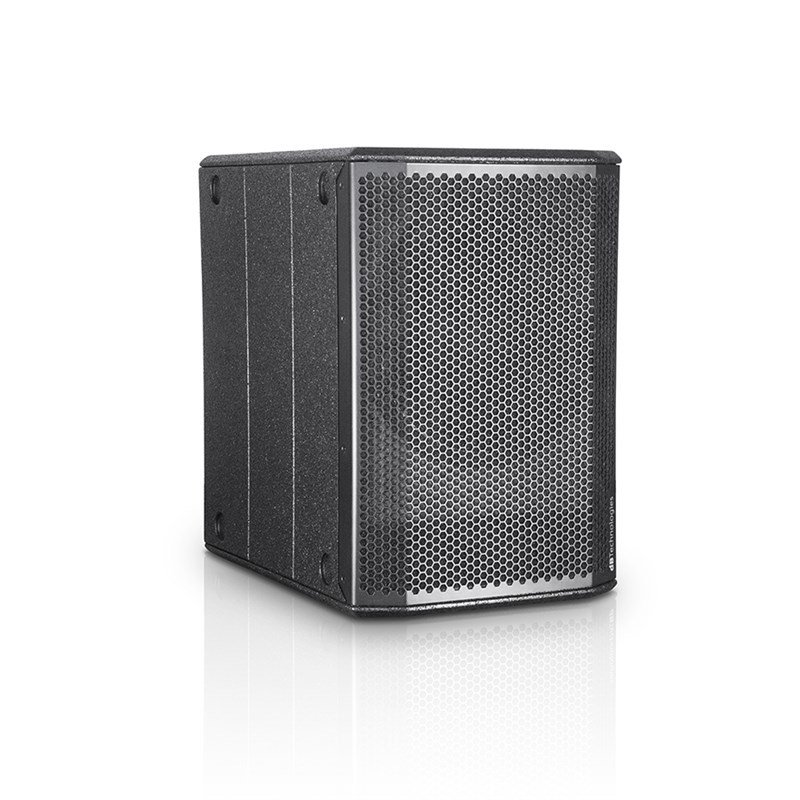

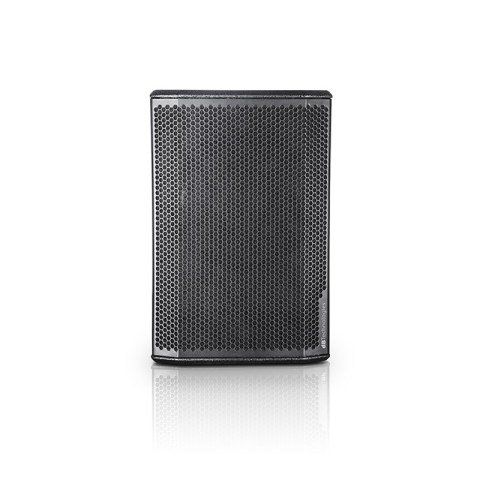

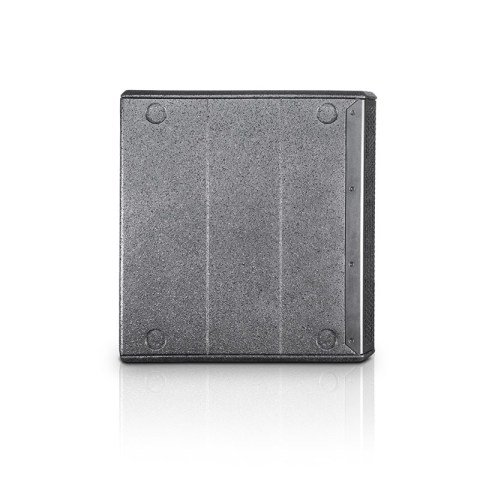

dB Technologies SUB 612 12 inch 600W/RMS 1200W/Peak Aktif Subwoofer

dB Technologies SUB 612 12 inch 600W/RMS 1200W/Peak Aktif Subwoofer

FEATURES

600 W RMS CLASS-D AMPLIFIER

STEREO BALANCED INPUT

LINK OR X-OVER BALANCED STEREO OUTPUT MODE

COMPACT AND STURDY WOOD CABINET

LIGHTWEIGHT

POLARITY INVERSION SWITCH

FLAT OR BOOST EQ MODE SWITCH

Technical Data

Speaker Type Active Subwoofer

Acoustical data

Frequency Response [-10dB]46 - 123 Hz

Max SPL (1 m)129 dB

Directivityomnidirectional

LF 12”

LF Voice Coil 2.5"

Amplifier

Amp Technology SMSP digital amplifier

Amp Class Class D

RMS Power 600 W

Peak Power 1200 W

Processor

Controller DSP 28/56 Bit

Limiterb Peak, Thermal, RMS

Controls1x Subwoofer attenuation Control

1x Flat/Boosted switch

1x Switch output mode

1x Polarity switch

Input

Signal Input 2x XLR (balanced)

Signal Output 2x XLR (balanced)

Mechanics

Housing Black painted Plywood

Handles 1 on top

Pole Mount M20

Width 360 mm (14.72 in)

Height 550 mm (21.65 in)

Depth 525 mm (20.67 in)

Weight 19.8 Kg (43.65 lbs)
