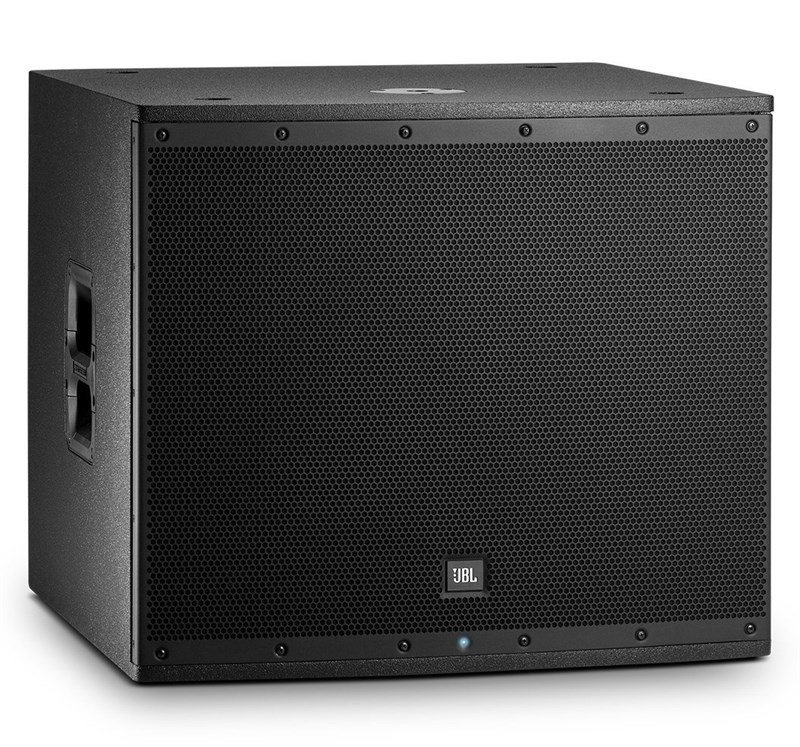

Jbl EON618S 18'' 1000 Watt Aktif Subwoofer

Jbl EON618S 18'' 1000 Watt Aktif Subwoofer

JBL Premium Transducers

1000 W highly efficient Class-D amplification

Maximum SPL Output: 134dB

System Type: Self powered 18” Subwoofer

Frequency Range (-10dB): 31Hz - 150Hz

Frequency Response (- 3dB): 42.5Hz - 150Hz

Bluetooth Control

• 3 Parametric EQs + Hi & Lo Shelf • Gain and Delay • Save and Recall settings • Polarity Inversion

JBL Engineered Crossover Presets

• 80 Hz • 100 Hz • 120 Hz • EON

M20 Pole Cup

Rugged, stage-ready Duraflex enclosure

System Type Self powered 18” Subwoofer

Maximum SPL Output 134 dB

Frequency Range (-10 dB) 31Hz –150Hz

Frequency Response (-3 dB) 42.5Hz – 150Hz

System Power Rating 1000W Peak, 500W Continuous

Input Impedance 22k (balanced)

Line Input Gain 0 to 36 dBu

Line +14dBu

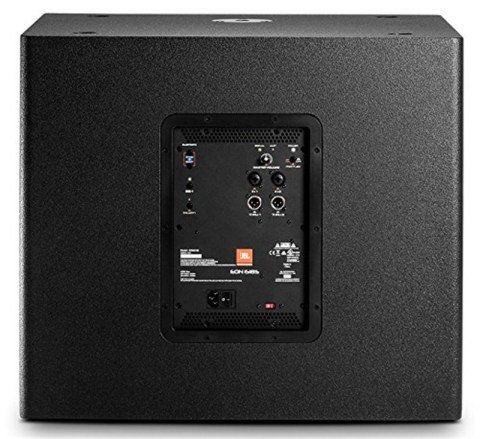

Connectors 2 x Balanced XLR-1/4” combination inputs;

2 x male XLR loop thru out

LED Indicators Front Power LED (Defeatable, white) Rear Power LED (White), Bluetooth (Blue), EQ+ (Green) Preset (Green) Signal (Green) Limit (Orange)

Cooling Passive

AC Power Input 100-120VAC 50/60Hz; 230-240VAC 50/60Hz

AC Power Consumption (120V~) 1/8th Power – 1.14A (Max), 1/4th Power – 1.71A (Max),

1/3rd Power – 2.03A (Max)

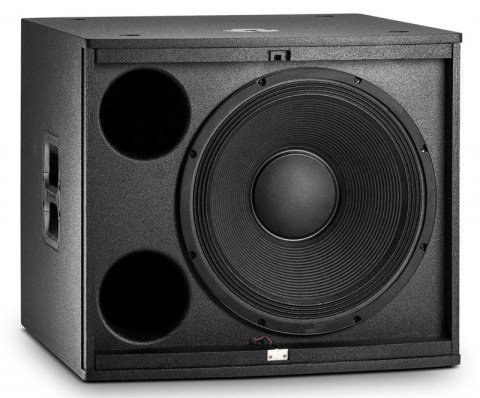

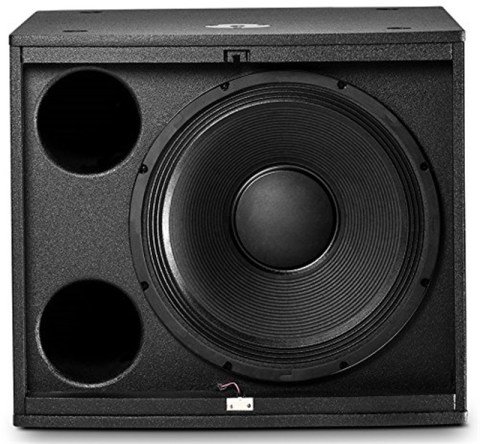

LF Driver 1 x JBL 618H 457mm (18”) woofer with 2” voice coil

Crossover Frequency Selectable; 80 Hz, 100 hz, or 120 Hz

Material Duraflex coated wooden enclosure

Suspension/Mounting M20 Threaded Pole Cup

Handles 2

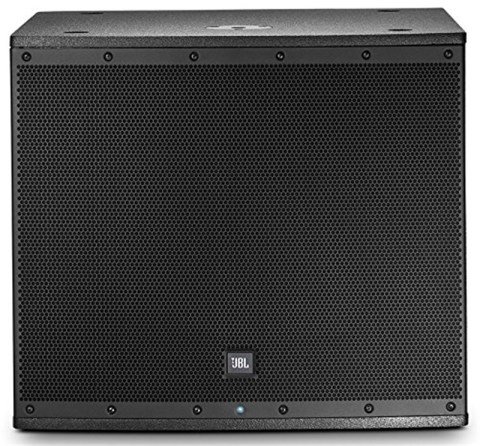

Grille Powder coated, Obsidian, perforated steel with acoustically transparent black cloth backing

Dimensions (L x W x H) 582mm x 668mm x 645mm

(22.9” x 26.3” x 25.4”)

Weight 72 lbs (35.5 kg)

Shipping Weight 91 lbs (41.2 kg)

Shipping Dimensions (L x W x H) 803mm x 768mm x 631mm (31.6" x 30.2" x 25.1")
